Avoid Favors Layer

Contents

The Avoid Favors Layer toggles the display of Route Modifiers—road segments designated to be avoided or favored when the route is calculated.

  • This setting controls map display only. It does not influence routing logic. The routing algorithm respects all avoid/favors assigned to the assetID regardless of whether they are displayed on the map.
  • Ensure that any modifiers displayed on the map are correctly associated with the active assetID to prevent discrepancies between the map and the calculated route.

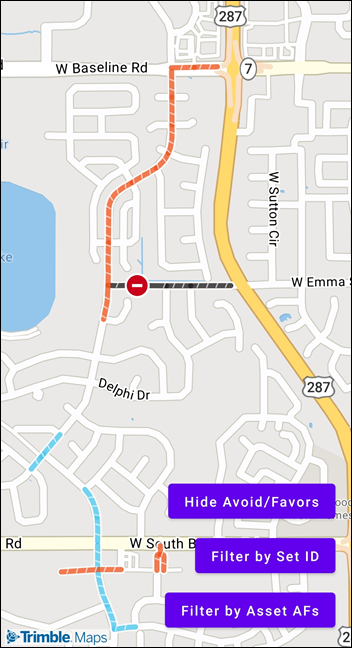

The sample code below shows how to apply the layer. The orange lines are avoids, blue lines are favors, and black lines are closures.

Avoid Favors Layer

// SampleAvoidFavorsActivity.kt
package com.trimblemaps.mapssdkqatestingproject

import android.os.Bundle
import android.util.Log
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.foundation.layout.*
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.foundation.lazy.items
import androidx.compose.material.*
import androidx.compose.runtime.*
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.platform.LocalLifecycleOwner
import androidx.compose.ui.unit.dp
import androidx.compose.ui.viewinterop.AndroidView
import androidx.lifecycle.Lifecycle
import androidx.lifecycle.LifecycleEventObserver
import com.trimblemaps.account.TrimbleMapsAccountManager
import com.trimblemaps.api.avoidFavors.v1.AssetAvoidFavors
import com.trimblemaps.api.avoidFavors.v1.TrimbleMapsAvoidFavors
import com.trimblemaps.api.avoidFavors.v1.models.AFSetsResponse
import com.trimblemaps.api.avoidFavors.v1.models.AssetAvoidFavorsResponse
import com.trimblemaps.core.EnvironmentCriteria
import com.trimblemaps.mapsdk.TrimbleMaps
import com.trimblemaps.mapsdk.camera.CameraPosition
import com.trimblemaps.mapsdk.geometry.LatLng
import com.trimblemaps.mapsdk.maps.MapView
import com.trimblemaps.mapsdk.maps.Style
import com.trimblemaps.mapsdk.maps.TrimbleMapsMap
import retrofit2.Call
import retrofit2.Callback
import retrofit2.Response


class SampleAvoidFavorsActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        // Initialize TrimbleMaps
        TrimbleMaps.getInstance(this)

        setContent {
            MaterialTheme {
                AvoidFavorsScreen()
            }
        }
    }
}

@Composable
fun AvoidFavorsScreen() {
    var map by remember { mutableStateOf<TrimbleMapsMap?>(null) }
    var allSetIds by remember { mutableStateOf<List<Int>>(emptyList()) }
    var selectedSetIds by remember { mutableStateOf<Set<Int>>(emptySet()) }
    var assetSetIds by remember { mutableStateOf<List<Int>>(emptyList()) }
    var isDataLoaded by remember { mutableStateOf(false) }
    var isLayerVisible by remember { mutableStateOf(false) }
    var showFilterDialog by remember { mutableStateOf(false) }
    var errorMessage by remember { mutableStateOf<String?>(null) }

    val context = LocalContext.current

    // Load set IDs on first composition
    LaunchedEffect(Unit) {
        val avoidFavors = TrimbleMapsAvoidFavors.builder()
            .pageNumber(0)
            .pageSize(25)
            .build()

        avoidFavors.enqueueCall(object : Callback<AFSetsResponse> {
            override fun onResponse(
                call: Call<AFSetsResponse?>,
                response: Response<AFSetsResponse?>
            ) {
                var ids = arrayListOf<Int>()
                if (response.body() != null) {
                    for (set in response.body()!!.afSets()) {
                        ids.add(set.setID())
                    }
                }
                allSetIds = ids
                isDataLoaded = true
                Log.d("AvoidFavors", "Loaded ${ids.size} set IDs: $ids")
            }

            override fun onFailure(
                call: Call<AFSetsResponse?>,
                t: Throwable
            ) {
                Log.e("AvoidFavors", "Failed to load set IDs", t)
                isDataLoaded = false
                errorMessage = "Failed to load set IDs: ${t.message}"
            }

        })

        val assetAvoidFavors = AssetAvoidFavors.builder()
            .vehicleId(TrimbleMapsAccountManager.getAccount()!!.assetId()!!)
            .build()

        assetAvoidFavors.enqueueCall(object : Callback<AssetAvoidFavorsResponse> {
            override fun onResponse(
                call: Call<AssetAvoidFavorsResponse?>,
                response: Response<AssetAvoidFavorsResponse?>
            ) {
                var ids = arrayListOf<Int>()
                if (response.body() != null) {
                    for (set in response.body()!!.data()) {
                        ids.add(set.setId())
                    }
                }
                assetSetIds = ids
                Log.d("AvoidFavors", "Loaded ${ids.size} Asset set IDs: $ids")
            }

            override fun onFailure(
                call: Call<AssetAvoidFavorsResponse?>,
                t: Throwable
            ) {
                Log.e("AvoidFavors", "Failed to load asset set IDs", t)
            }

        })
    }

    Box(modifier = Modifier.fillMaxSize()) {
        // Map View
        TrimbleMapView(
            modifier = Modifier.fillMaxSize(),
            onMapReady = { trimbleMapsMap ->
                map = trimbleMapsMap
                Log.d("AvoidFavors", "Map ready")
            }
        )

        // Buttons
        Column(
            modifier = Modifier
                .align(Alignment.BottomEnd)
                .padding(16.dp),
            horizontalAlignment = Alignment.End,
            verticalArrangement = Arrangement.spacedBy(8.dp)
        ) {
            Button(
                onClick = {
                    map?.let { m ->
                        isLayerVisible = !isLayerVisible
                        m.setAvoidFavorsVisibility(isLayerVisible)

                        if (isLayerVisible) {
                            // Apply current filter
                            if (selectedSetIds.isEmpty()) {
                                m.setAvoidFavorsFilter(null)
                            } else {
                                m.setAvoidFavorsFilter(ArrayList(selectedSetIds))
                            }
                        }

                        Log.d("AvoidFavors", "Layer ${if (isLayerVisible) "shown" else "hidden"}")
                    }
                }
            ) {
                Text(if (isLayerVisible) "Hide Avoid/Favors" else "Show Avoid/Favors")
            }

            Button(
                onClick = { showFilterDialog = true },
                enabled = isDataLoaded
            ) {
                Text("Filter by Set ID")
            }

            Button(
                onClick = {
                    map?.let { m ->
                        // Enable AF layer is it's not already visible
                        if (!isLayerVisible) {
                            isLayerVisible = true
                            m.setAvoidFavorsVisibility(true)
                        }

                        // Apply filter to only show AF Sets for the asset
                        if (assetSetIds.isEmpty()) {
                            m.setAvoidFavorsFilter(null)
                            Log.d("AvoidFavors", "No AFs associated with asset, showing all AFs in account")
                        } else {
                            m.setAvoidFavorsFilter(ArrayList(assetSetIds))
                            selectedSetIds = assetSetIds.toSet()
                            Log.d("AvoidFavors", "Showing Asset AFs: ${assetSetIds}")
                        }
                    }
                },
                enabled = isDataLoaded
            ) {
                Text("Filter by Asset AFs")
            }
        }
    }

    // Filter Dialog
    if (showFilterDialog) {
        FilterDialog(
            allSetIds = allSetIds,
            selectedSetIds = selectedSetIds,
            onDismiss = { showFilterDialog = false },
            onUpdate = { newSelection ->
                selectedSetIds = newSelection
                showFilterDialog = false

                // Apply filter to map
                map?.let { m ->
                    if (selectedSetIds.isEmpty()) {
                        m.setAvoidFavorsFilter(null)
                        Log.d("AvoidFavors", "Filter cleared - showing all sets")
                    } else {
                        m.setAvoidFavorsFilter(ArrayList(selectedSetIds))
                        Log.d("AvoidFavors", "Filter applied with ${selectedSetIds.size} set IDs: $selectedSetIds")
                    }
                }
            }
        )
    }

    // Error Dialog
    errorMessage?.let { message ->
        AlertDialog(
            onDismissRequest = { errorMessage = null },
            title = { Text("Error Loading Set IDs") },
            text = { Text(message) },
            confirmButton = {
                Button(onClick = { errorMessage = null }) {
                    Text("OK")
                }
            }
        )
    }

    // Loading Dialog
    if (!isDataLoaded && errorMessage == null) {
        AlertDialog(
            onDismissRequest = { },
            title = { Text("Loading") },
            text = { Text("Set IDs are loading. Please wait...") },
            confirmButton = { }
        )
    }
}

@Composable
fun TrimbleMapView(
    modifier: Modifier = Modifier,
    onMapReady: (TrimbleMapsMap) -> Unit
) {
    val context = LocalContext.current
    val lifecycle = LocalLifecycleOwner.current.lifecycle

    val mapView = remember {
        MapView(context).apply {
            getMapAsync { trimbleMapsMap ->
                val position = CameraPosition.Builder()
                    .target(LatLng(39.987032, -105.105344))
                    .zoom(13.0)
                    .build()
                trimbleMapsMap.cameraPosition = position
                trimbleMapsMap.setStyle(Style.TrimbleMobileStyle.MOBILE_DAY)
                onMapReady(trimbleMapsMap)
            }
        }
    }

    DisposableEffect(lifecycle) {
        val observer = LifecycleEventObserver { _, event ->
            when (event) {
                Lifecycle.Event.ON_START -> mapView.onStart()
                Lifecycle.Event.ON_RESUME -> mapView.onResume()
                Lifecycle.Event.ON_PAUSE -> mapView.onPause()
                Lifecycle.Event.ON_STOP -> mapView.onStop()
                Lifecycle.Event.ON_DESTROY -> mapView.onDestroy()
                else -> {}
            }
        }

        lifecycle.addObserver(observer)

        onDispose {
            lifecycle.removeObserver(observer)
            mapView.onDestroy()
        }
    }

    AndroidView(
        factory = { mapView },
        modifier = modifier
    )
}

@Composable
fun FilterDialog(
    allSetIds: List<Int>,
    selectedSetIds: Set<Int>,
    onDismiss: () -> Unit,
    onUpdate: (Set<Int>) -> Unit
) {
    var tempSelection by remember { mutableStateOf(selectedSetIds) }

    AlertDialog(
        onDismissRequest = onDismiss,
        title = { Text("Select Set IDs to Display") },
        text = {
            Column(
                modifier = Modifier
                    .fillMaxWidth()
                    .height(400.dp)
            ) {
                // Select All / Clear All Buttons
                Row(
                    modifier = Modifier
                        .fillMaxWidth()
                        .padding(bottom = 8.dp),
                    horizontalArrangement = Arrangement.spacedBy(8.dp)
                ) {
                    Button(
                        onClick = { tempSelection = allSetIds.toSet() },
                        modifier = Modifier.weight(1f)
                    ) {
                        Text("Select All")
                    }

                    Button(
                        onClick = { tempSelection = emptySet() },
                        modifier = Modifier.weight(1f)
                    ) {
                        Text("Clear All")
                    }
                }

                Divider(modifier = Modifier.padding(vertical = 8.dp))

                // Checkbox List
                LazyColumn(
                    modifier = Modifier.fillMaxSize()
                ) {
                    items(allSetIds) { setId ->
                        Row(
                            modifier = Modifier
                                .fillMaxWidth()
                                .padding(vertical = 4.dp),
                            verticalAlignment = Alignment.CenterVertically
                        ) {
                            Checkbox(
                                checked = tempSelection.contains(setId),
                                onCheckedChange = { checked ->
                                    tempSelection = if (checked) {
                                        tempSelection + setId
                                    } else {
                                        tempSelection - setId
                                    }
                                }
                            )
                            Text(
                                text = "Set ID: $setId",
                                modifier = Modifier.padding(start = 8.dp)
                            )
                        }
                    }
                }
            }
        },
        confirmButton = {
            Button(onClick = { onUpdate(tempSelection) }) {
                Text("Update")
            }
        },
        dismissButton = {
            Button(onClick = onDismiss) {
                Text("Cancel")
            }
        }
    )
}
Last updated February 13, 2026.
